LED High Bay Light-SHBL-150WG

LED High Bay Light

Model:SHBL-150WG

Inquiry Now

Inquiry details *





Description:

Product Attributes :

◆Pure cupper heat pipe directly heat sink,transfer speed x200

◆Using LM80 Rated OSRAM/Philips/Nichia SMD EMC3030 LED

◆Widely input voltage range, constant current and constant voltage MEANWELL  driver

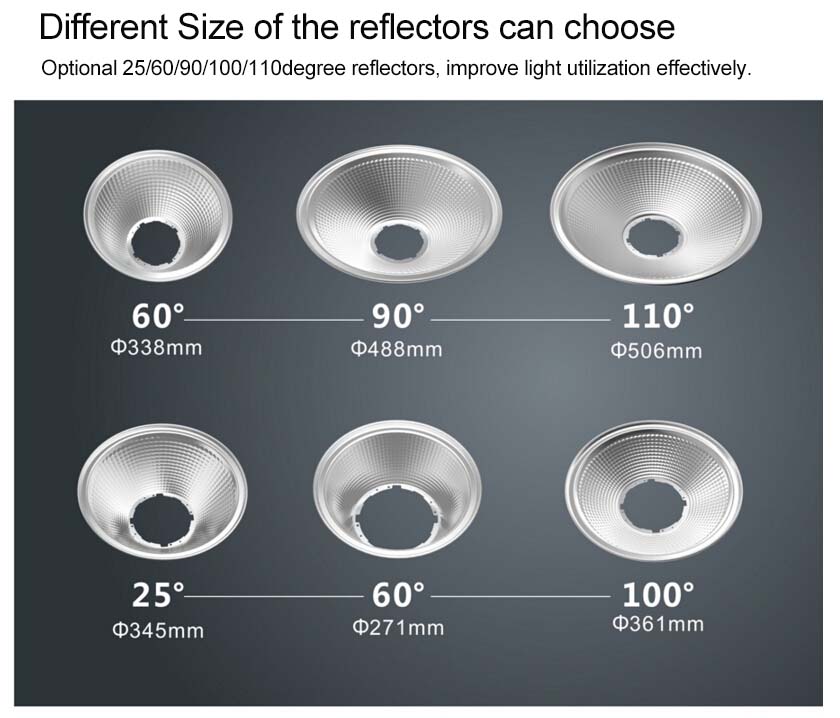

◆Snap-in type reflectors,easy installation

◆Scales reflectors with different angle,high light utilization

◆5 years warranty,Tc70ºc 50000hrs


※ Lamp parameter 规格参数

Power 功率150W
 Input Voltage    输入电压90-305VAC 127-431VDC
Frequency Range   频率范围4763Hz
Power Factor(Typ. 功率因数PF>0.98/115VAC PF>0.95/230VAC   PF>0.92/277VAC
LED Brand   LED品牌LM80 Rated OSRAM/Philips/Nichia 3030
LED Quantity   LED数量150PCS
System Consumption     系统功耗150±1W
LED Luminous Efficiency   LED发光效率120-130 Lm /W
IP Rating  防护等级IP65/67
Junction Temperature    LED结温≤80
Color Temperature        色温3000K/4500K/5000K/5700K/6500K
Color Rendering Index    显色指数Ra80
Light Distribution          配光曲线Symmetric/round spot  对称式/圆形光斑
Life Span  光源寿命≥50,000Hrs(Note3)
The color of the lamp shell  灯具颜色black/ silver 黑色、银色
Certification  认证CE  ROHS







There is no doubt that light can stimulate human body and generate obvious physical reaction. Physical doctor Baba Pendse focuses on the effect of LED lamps on human psychological health. He believes the LED Lighting can adjust the biological cycle and thus affect sleep, sensitiveness and body function. In contrast, strong light especially at night can help people to stay awake. So according to Rea, people’s desire for the light is out of the desire to grasp information. The clearer and brighter the environment is, the more information you can get. “Under bright led area light we can read leisurely or easily see what the children are doing.”

 Under the same LED Lights, it doesn’t necessarily mean people will gain the same emotion since everybody reacts differently to light just like how they reacts to food. So you can barely find a specific lamp that can satisfy everyone in the office.
