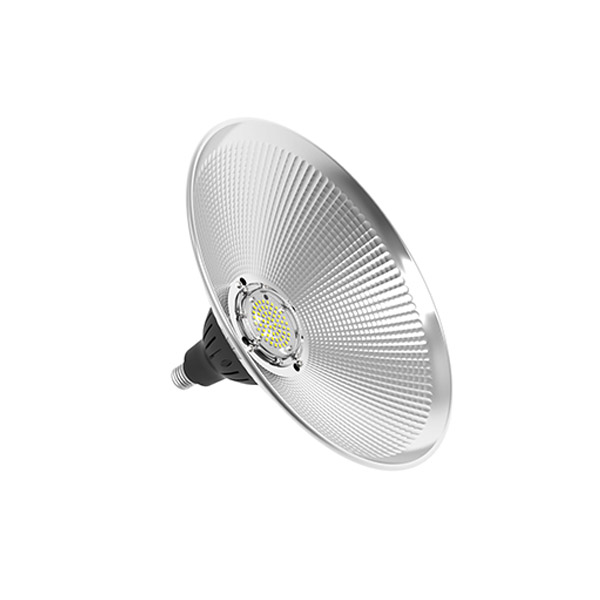

LED Low Bay Light-SHBL-50WE

LED Low Bay Light

Model:SHBL-50WE

Inquiry Now

Inquiry details *





Description:

Product Attributes :

◆E27/E40 lamp head,directly replace metal halide lamp

◆Using Epistar chip SMD LED

◆High PF constant current driver

◆Snap-in type reflectors,easy installation

◆Scales reflectors with different angle,high light utilization

※ Lamp parameter 规格参数

Power 功率50W
 Input Voltage    输入电压90-305VAC 127-431VDC
Frequency Range   频率范围47～63Hz
Power Factor(Typ. 功率因数PF>0.98/115VAC PF>0.95/230VAC   PF>0.92/277VAC
LED Brand   LED品牌Epistar
LED Quantity   LED数量100PCS
System Consumption     系统功耗50±1W
LED Luminous Efficiency   LED发光效率120-130 Lm /W
IP Rating  防护等级IP20
Junction Temperature    LED结温≤80℃
Color Temperature        色温3000K/4500K/5000K/5700K/6500K
Color Rendering Index    显色指数Ra＞80
Light Distribution          配光曲线Symmetric/round spot  对称式/圆形光斑
Life Span  光源寿命≥50,000Hrs(Note3)
The color of the lamp shell  灯具颜色silver 银色
Certification  认证CE  ROHS



※ Size 尺寸


※Application 应用场所
