LED Street Light-STL-303C 150W/250W

LED Street Light

Model:STL-303C 150W/250W

Inquiry Now

Inquiry details *





Description:

Product Attributes:

◆Metal driver box

◆Replace 200-300W metal halide lamp

◆Using Epistar chip SMT LED

◆High PF constant current driver

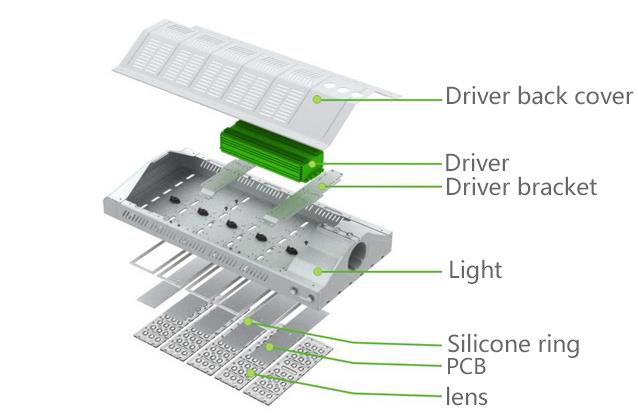

◆Reflectors integration heat dissipation structure

※ Lamp parameter规格参数

Power  功率150W/250W
Input Voltage 输入电压90-265VAC
Frequency Range 频率范围47-63HZ
Power Factor(TYP.功率因数
PF>0.98/36VAC
LED Brand LED品牌Epistar
LED Quantity LED数量
280PCS
System Consumption  系统功耗
150±1W/250W±1
LED Luminous Efficiency  LED发光效率90-100 LM/W
IP Rating 防护等级IP67

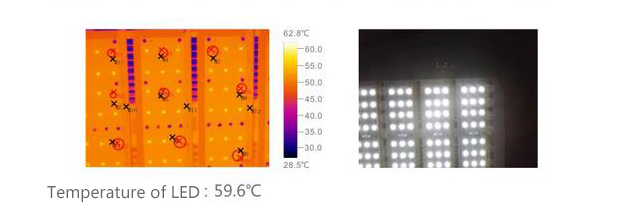

Junction Temperature  LED结温≤80℃
Color Temperature 色温3000K/4500K/5000K/5700K/6500K
Color Rendering Index 显色指数Ra>80

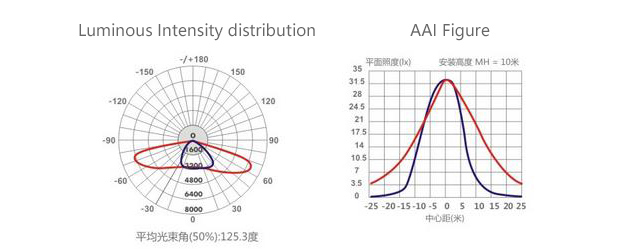

Light Distribution 配光曲线Symmetric/roundspot 对称式/圆形光斑
Life Span 光源寿命≥50,000Hrs
The color of the lamp shell 灯具颜色Silver 银色
Certification 认证CE/ROHS

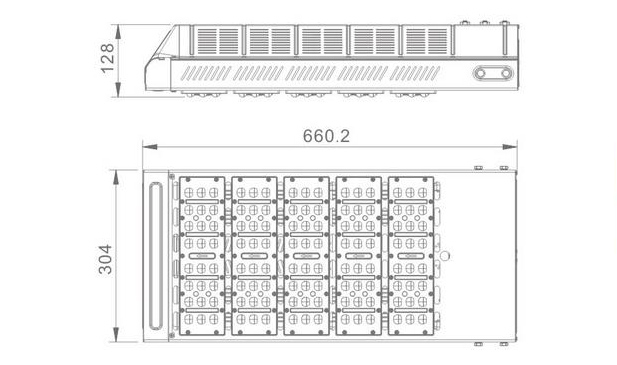

※Size 尺寸

    Unit:mm

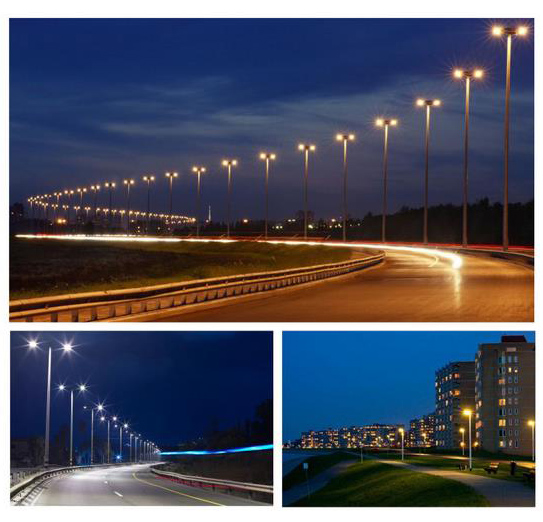

※Application 适用场所
