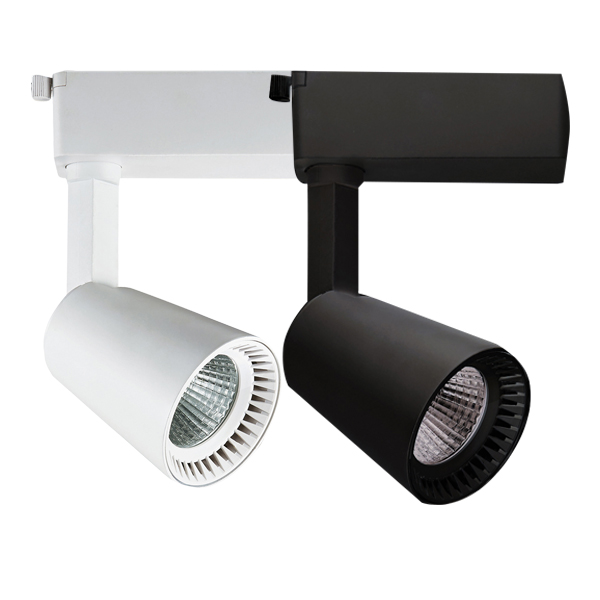

COB Track Light-SGD-10W

COB Track Light

Model:SGD-10W

Inquiry Now

Inquiry details *





Description:

Product Attributes:

◆Using Luminuc chip COB

◆High refers to, Ra > 95

◆Built-in high PF constant current driver

◆Three kinds of power, black and white two colors to choose

◆Anti-aging PA/ABS shell, ensure lamps and lanterns in harsh environments, such as damp,high temperature corrosion, not faded

※ Lamp parameter 规格参数

   Power 功率    10W    20W    30W
 Input Voltage    输入电压               85-265VAC
Frequency Range   频率范围               50-60HZ
Power Factor(Typ. 功率因数           PF>0.95/220VAC
COB Brand COB品牌               Luminus
COB Quantity   COB数量               1pcs
System Consumption     系统功耗   10±1W  20±1W  30±1W
LED Luminous Efficiency   LED发光效率             140LM/W
IP Rating  防护等级                IP44
Color Rendering Index    显色指数               Ra>95
Junction Temperature    LED结温              ≤85℃
Color Temperature        色温2700K/3000K/3500K/4000K/5000K/6500K
Light Distribution          配光曲线Symmetric/round spot  对称式/圆形光斑
Life Span  光源寿命           ≥50,000Hrs(Note3)
The color of the lamp shell  灯具颜色       white/black  白色、黑色
Certification  认证              CE、ROHS



※ Size 尺寸

   Unit：mm

※Installation Instruction 安装方式

※ Application 应用场所
